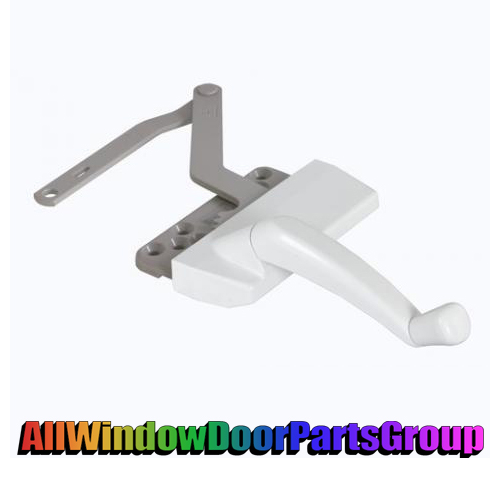

Truth Split Arm Casement Operator | 9 5/8″
$72.54
Available in bronze, gold and white.
Shipped with #AWDP-PP-454 crank handle, bracket and screws.
Used with hinge #ADWP-PF-75 (sold separately).

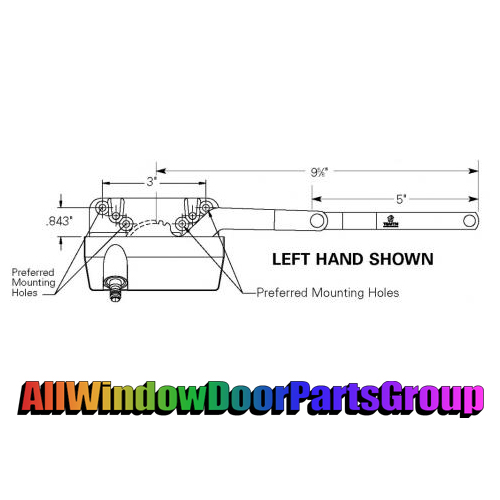

To determine left or right handing, view window from outside. If hinged on the left side, order a left hand operator.
Designed as an alternative to Truth’s® #15 Series Single Arm Operator with a 28% lower operating torque.
Profile changes will not be necessary if you are currently using the #15 Series Single Arm operator.
Sash weight should be limited to 50 lbs. to maintain ease of operation.
For PARTS ID help click here
or email pictures to info@allwindowdoorparts.com
Additional information
| Color | Bronze, Gold, White |
|---|---|
| Handing | Left, Right |
