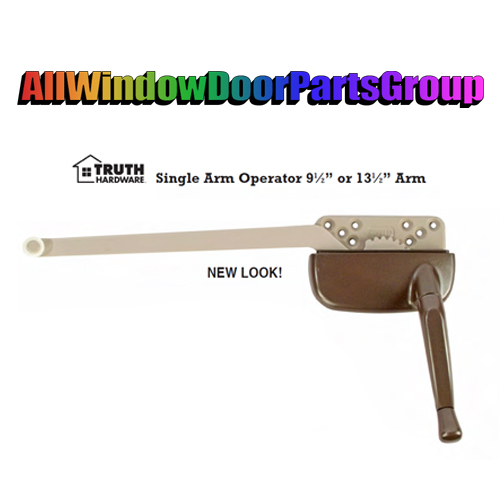

Truth Single Arm Casement Operator | 9 1/2″ or 13 1/2″


Operator with 9 1/2″ or 13 1/2″ arm.

Available in bronze, chestnut bronze, clay, gold or white.

Ships with #AWDP-PP-454 crank handle and screws.

Used with #AWDP-PF-75 or #AWDP-PF-77 hinge and #AWDP-OE-150 track.

The version with the 11″ arm is no longer manufactured. If yours measures 11″, replace it with the 9 1/2″ version.

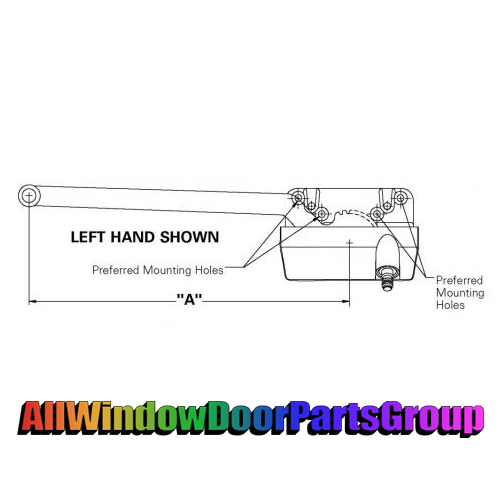

To determine arm length, measure from the center of the gear box to the center of the roller on arm.

To determine left or right handing, view window from outside. If hinged on the left, order a left hand operator.

For units such as Norco, D series, Jeld-Wen JEL-N-330 , Malta, Caradco, Alenco, Norco, Pozzi, Rockwell, Vedder, Wenco and others.

Click here for help identifying parts
or email pictures to

Additional information

Arm Length

9 1/2", 13 1/2"


Bronze, Chestnut Bronze, Clay, Gold, White


Left, Right
