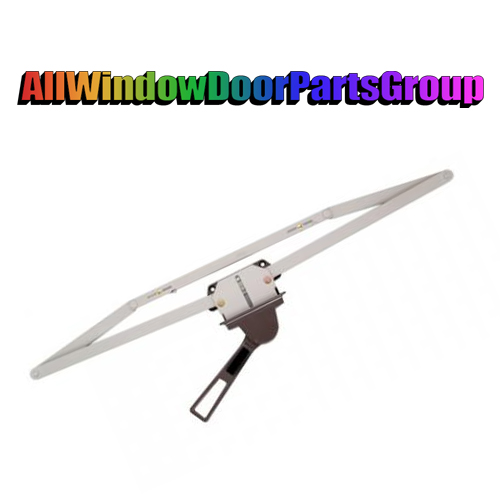

Double Pull Lever Awning Operator | 23.25″
$157.21

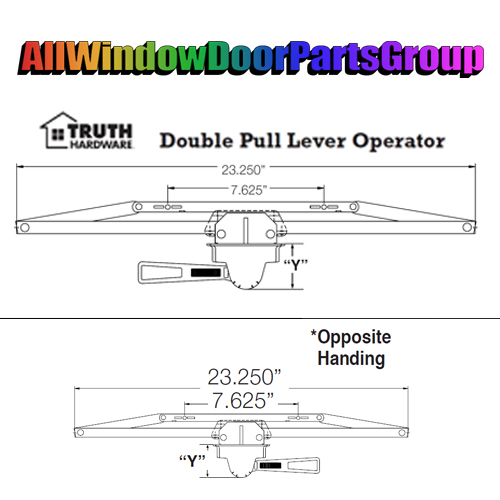

To Order: Determine “Y” dimension. If less than 2″, order C plate. If 2″ or more, order F plate.
Available in bronze, gold and white.
Note: Opposite handing is available only in bronze.
Ships with two sash hook and screws.
Used with #AWDP-PO-15 awning window hinge.
Used on larger awning windows (26″ wide or more).
Note: It may be necessary to make a slight modification in wooden sill cover when installing.
Truth Hardware have been designing and manufacturing window & door hardware since 1955, and are considered the leading manufacturer in North America.
Need help finding a part? Click here
or email pictures to info@allwindowdoorparts.com
Additional information
| Y Dimension | C Plate (less than 2"), C Plate Opposite Handing, F Plate (2" or more), F Plate Opposite Handing |
|---|---|
| Color | Bronze, Gold, White |
